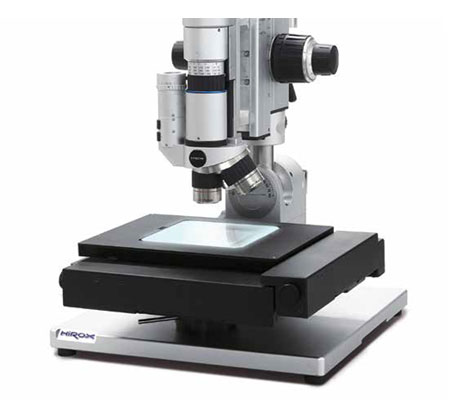

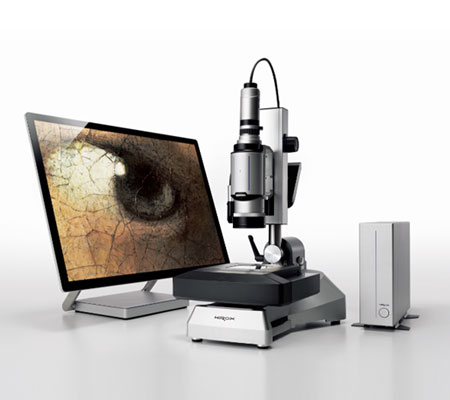

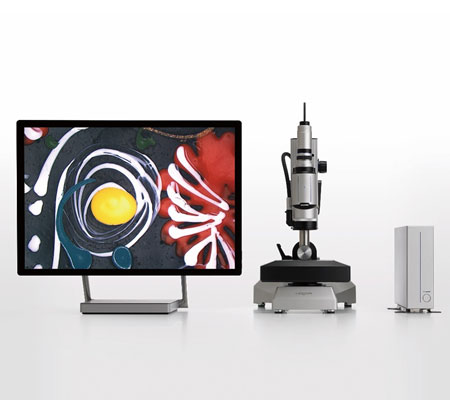

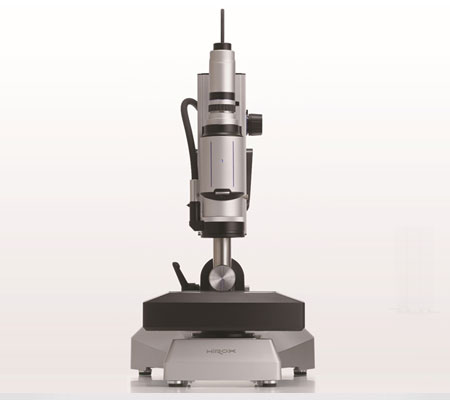

HRX-01
The HRX-01 features a brand new high resolution camera, a newly developed intelligent stand combined with high end motorized lenses, bringing digital microscopy to a completely new level - 4K Resolution. Because we know that each customers needs is unique, it’s easy to customize your system using the most advanced lens, stand, software and PC for your specific observation applications.
- Large aperture lens provides super high resolution and crystal clear image
- Fully motorized zoom lens for easy operation and improved accuracy
- Telecentric lens without distortion for precise measurement
- Wide angle high resolution one-shot observation with magnification starting from 10x

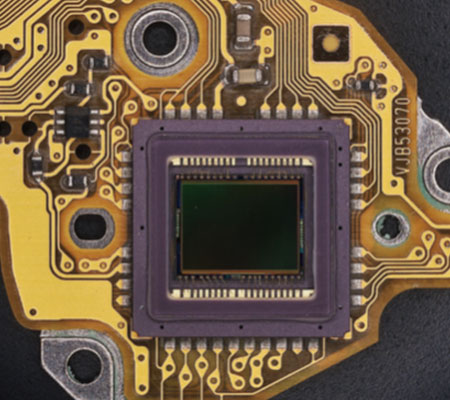

Ultra High Resolution 5.0 Mega Pixel Camera
Newly developed 5.0 Mega pixel CMOS chip supporting ultra high resolution with 50 frames per second providing crystal clear images.
Live HDR - Automatic Optimization of Live Images
The HRX-01 artificial intelligence automatically select the optimal observation settings according to the observation scene and object.
Multiple Lighting Capability
The ST-AS stand can expand lighting options, such as transmission illumination, but also it allows controllable additional external lighting such as the newly developed dual side lighting option, offering higher flexibility of observation.
Observation Angle Sensor
The new inclination detection sensor displays and records the angle information within the captured image (jpg metadata), enabling a higher level of reproducibility.

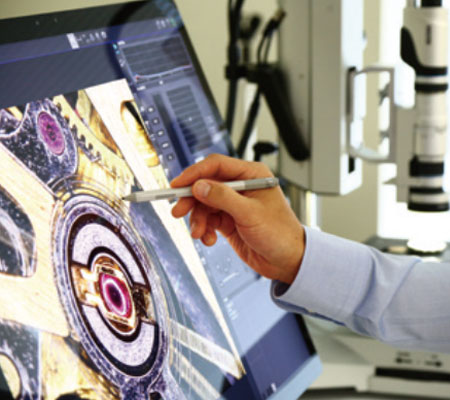

Platform Compatible with Surface Studio and 4K PCs
Select neccessorry application software and features for personal preferences and samples. Capability to create and save individual operators' customized setting for daily use.
2D Measurement
Accurate and calibrated measurements in real-time, including length, area, angle, diameter, and automatic surface area. The combination of encoded optics and powerful software eliminates any human errors by automatically selecting and displaying the correct lens, adapter, and scale on the screen at any time.

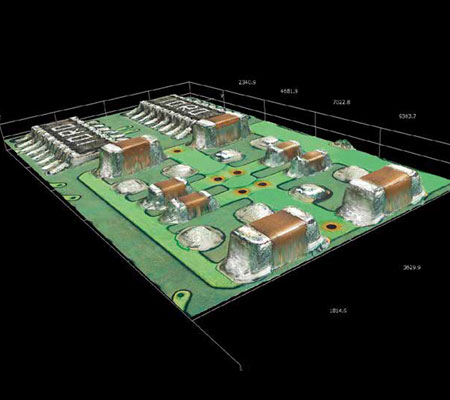

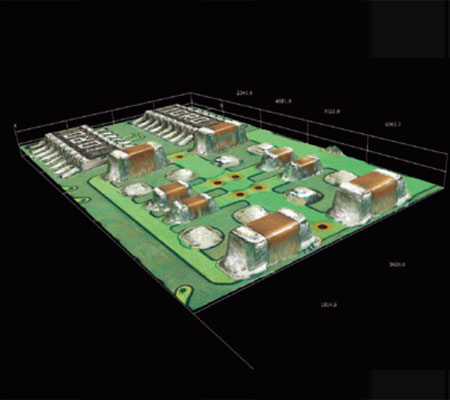

3D Measurement / Profiling
Simply adjust the profile slicer to visualize and measure any details on the 3D object: the profile created is like a virtual cross section allowing precise measurements. Using the profile measurement function, it's very simple to measure height, volume, roughness, angle or radius for example by simply "drawing" a circle with 3 points.
2D & 3D Tiling
Just select the area of interest and the image will automatically begin stitching seamlessly in real-time with the motorized XYZ stage creating amazing high optical resolution images with a wide field of view simultaneously. And with the “map” function, the tiled image is displayed on the screen so you just need to click on the map to bring the stage to the clicked position.
Contamination Analyzer (ISO16232 Compliant)
Particles are automatically detected with pass/fail judgment by settable threshold. Advanced statistical data with histogram and frequency distribution are automatically calculated and displayed in Excel. It’s very easy to measure the shape of every particle or cells, from metal particles to animal cells.
Technical Data
Lens:
Telecentric Ultra High Resolution Motorized Zoom Lens (10-200x)
High Range Turret Motorized Zoom Lens (20-2500x)
Super High Range Turret Motorized Zoom Lens (20-5000x)
Low Range Motorized Zoom Lens (20-160x)
Middle Range Motorized Zoom Lens (50-400x)
High Resolution Motorized 10x Zoom Lens
Macro Zoom Lens (0-50x)
Macro Lens (0-20x)
Camera:
Imaging Device: 2/3 inch 5.07 Mega-Pixel CMOS Image Sensor Global Shutter Type
Total Pixels: 2464 (H) x 2066 (V)
Effective Pixels: 2448 (H) x 2048 (V)
Frame Rate: 50 F/S (max)
Light Source: High Intensity LED
Weight: 2.5 kg (7.9 lb) with Camera Unit: 1 kg (2.2 lb)
Dimension:
130 (W) x 243.6 (V) x 275 (H) mm
[51.2 (W) x 95.9 (V) x 108.3 (H) inch]
Applications
- Automotive
- Biology

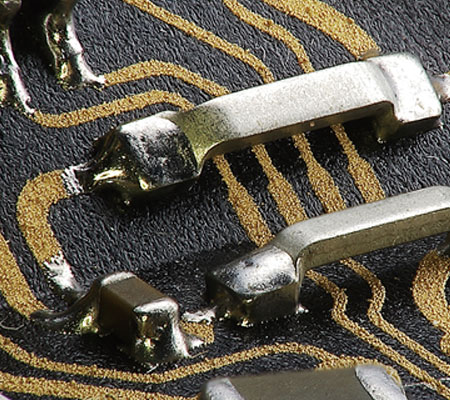

- PCB & Micro Electronics
- Material Sciences
- Forensics
- Art Restoration
- Metallography
- Nano Technology
- Cosmetics
- Security Printing
