Spectrometers /

Benchtop XRF

Rigaku's ART division specializes in X-ray fluorescence (XRF) spectrometers employing energy dispersive detectors (EDXRF). XRF is an X-ray spectrometric technique for elemental analysis of a wide variety of materials. Other phrases for XRF instruments include: XRF analyzer, XRF spectrometer, XRF analysis, X-ray fluorescence analyzer, x-ray fluorescence spectrometry, fluorescence x, spectromètre de fluorescence X, Röntgenfluoreszenzanalyse, fluorescencia de rayos X, Röntgenfluoreszenz, Röntgenfluorescentie, Röntgenfluorescens, Röntgenfluoresenssi, Røntgenfluorescens and Promieniowanie rentgenowskie.

Typical uses of EDXRF include the analysis of petroleum oils and fuel, plastic, rubber and textiles, pharmaceutical products, foodstuffs, cosmetics and body care products, fertilizers, geological materials, mining feeds, slags and tails, cement, heat-resistant materials, glass, ceramics, catalysts, wafers; the determination of coatings on paper, film, polyester; metals and alloys, glass and plastic; forensics; multi-layer thin films on silicon wafers, photovoltaics and rotating storage media as well as pollution monitoring of solid waste, effluent, cleaning fluids, pools and filters. In addition, X-ray Transmission (XRT) process gauges are employed to measure sulfur (S) in crude oil and marine bunker fuel.

XRF and EDXRF spectrometers are the elemental analysis tool of choice, for many applications, in that they are smaller, simpler in design and cost less to operate than other technologies like inductively coupled plasma optical emission spectroscopy (ICP-OES) and atomic absorption (AA) or atomic fluorescence (AF) spectroscopy. Examples of some common EDXRF applications are: Cement and raw meal: sulfur, iron, calcium, silicon, aluminum, magnesium, etc; Kaolin clay: titanium, iron, aluminum, silicon, etc; Granular catalysts: palladium, platinum, rhodium, ruthenium, etc; Ores: copper, tin, gold, silver, etc; Cement and mortar fillers: sulfur in ash.

Other examples of common EDXRF applications include: Gasoline, diesel and RFG: sulfur, manganese, lead, etc; Residual gas oils: sulfur, chlorine, vanadium, nickel, etc; Secondary oil: chlorine, etc; Kerosine, naphtha: sulfur, etc; Crude oil and bunker fuels: sulfur, vanadium, nickel, etc; Plating, pickling & pre-treatment baths: gold, copper, rhodium, platinum, nickel, sulfates, phosphates, chlorides, etc; Acetic acid: magnesium, cobalt and bromine; Terephthalic acid (TPA): cobalt, manganese, iron, etc; Dimethyl terephthalate (DMT): heavy metals; PVC copolymer solutions: chlorine; Photographic emulsion: silver; Clay: metals and non-metals; Waste and effluent streams: RCRA metals, chlorides, phosphates, etc. Additionally, EDXRF and XRF are employed to quantify atomic elements in: Food, pet food and other animal feed: potassium, phosphorus and chlorine; Cosmetics: zinc, titanium, calcium, manganese, iron, silicon, phosphorus, sulfur, aluminum, and sodium; Wood treatment: CCA, Penta, ACQ, ACZA, phosphorus-based fire retardants, copper naphthanate, zinc napthanate, TBTO, IPBC and combinations of these; Antacids: calcium; and Toothpaste: phosphorus and tin.

NEX QC NEX QC+ QuantEZ NEX DE NEX DE VS NEX CG II

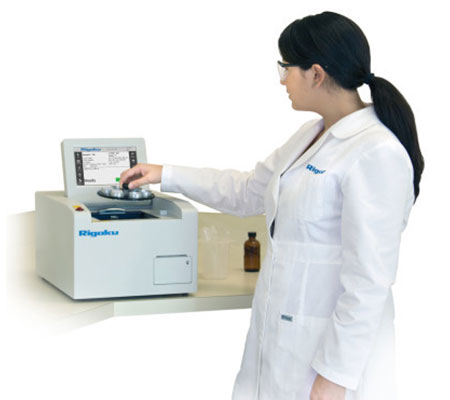

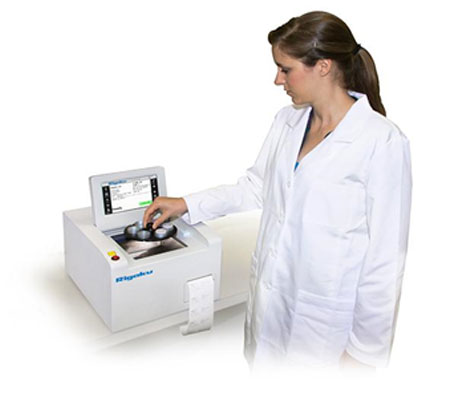

NEX QC
Energy Dispersive X-ray Fluorescence Analyzer

New low cost benchtop EDXRF for rapid qualitative and quantitative elemental analysis

Rigaku NEX QC energy dispersive X-ray fluorescence (EDXRF) analyzer delivers rapid qualitative and quantitative determination of major and minor atomic elements in a wide variety of sample types:

  • Analyze ₁₁Na to ₉₂U non-destructively
  • Solids, liquids, alloys, powders and thin films
  • 50kV X-ray tube for wide elemental coverage
  • Semiconductor detector for superior data quality
  • Modern smartphone style "icon driven" user interface
  • Multiple automated tube filters for enhanced sensitivity
  • Convenient built in thermal printer
  • Low cost with unmatched performance-to-price ratio
  • Self-contained with built-in printer
Superior EDXRF capabilities with ease-of-use
As a premium low cost benchtop X-ray Fluorescence (XRF) analyzer, the Rigaku NEX QC delivers wide elemental coverage with an easy-to-learn software interface in a robust package designed for industrial at-line quality control elemental analysis applications.

Specifically designed for routine quality control applications, the new Rigaku NEX QC features an intuitive "icon-driven" touch screen interface for easy operation and a built-in printer for convenience. The shuttered 50 kV X-ray tube and Peltier cooled semiconductor detector deliver exceptional short-term repeatability and long-term reproducibility with excellent element peak resolution. This high voltage capability (50 kV), along with multiple automated X-ray tube filters, provides a wide range of applications versatility and low limits-of-detection (LOD). Options include fundamental parameters, automatic sample changer, sample spinner and helium purge for enhanced light element sensitivity.

Technical Data

X-ray Tube:
- 50kV X-ray tube, 4W max power
- 6 tube filter positions with shutter

Detector:
- Semiconductor detector
- Peltier thermo-electric cooling
- Optimum balance of spectral resolution and max count rate

Sample Chamber:
- Large 190 x 165 x 60 mm sample chamber
- Single position 32 or 40 mm sample aperture

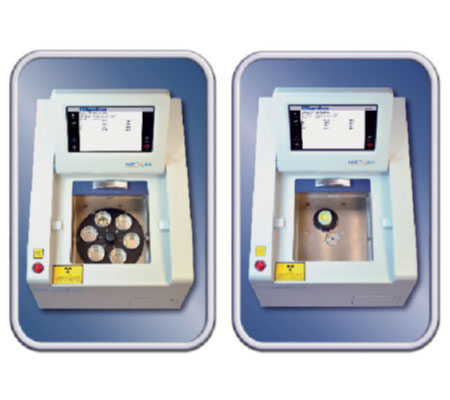

- Bulk sample aperture 5/6-position 40/32 mm automatic sample changer
- Single position 32 mm sample spinner
- Analysis in air or helium

Environmental Conditions:
Ambient temperature 10-35ºC (50-95ºF)
Relative humidity ≤85% non-condensing

Software & Application Packages:
- Qualitative and quantitative analysis
- RPF-SQX fundamental parameters (Option)
- Data export function with LIMS compatibility
- User selectable shaping times
- Simple flow bar wizard to create new applications

User Interface
- QuantEZ software
- External PC computer
- Data export connections

Single phase AC 100/220V, 1.4A (50/60 Hz)

Dimensions: 33.1(W) X 43.2(D) X 37.6(H) cm (13 X 17 X 14.8 inch)

Weight: 16 kg (35 lbs)

Applications
  1. Sulfur in oil - ASTM D4294, IP 336, ISO 8745, ISO 20847, JIS K 2541-4
  2. Lead in Gasoline - ASTM D5059
  3. Lube oils - ASTM D6481
  4. Wood Treatment
  5. Phosphorus Fire Retardant on Fabric
  6. Silicone Coating on Paper/Plastic
  7. RoHS
  8. Cement
  9. Coatings
  10. Mining & refining
  11. Metals and alloys
Download NEX QC Brochure Download NEX QC Petro Brochure Download NEX QC Silicone Brochure
Petroleum Products Applications
Rigaku NEX QC S in Diesel
Rigaku NEX QC Marine Fuels Analyzer
Si Coating Applications
Rigaku NEX QC Silicone on Paper & Plastic

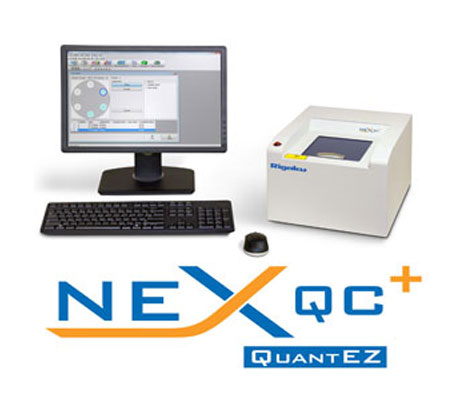

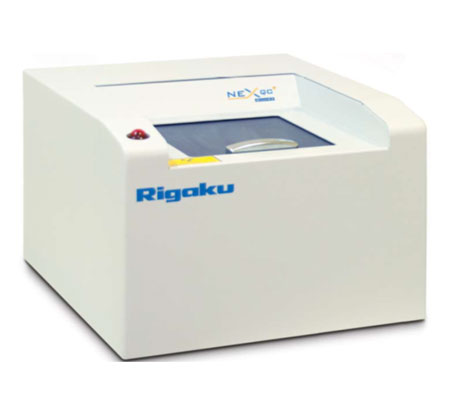

NEX QC+ QuantEZ
Energy Dispersive X-ray Fluorescence

Windows®-based EDXRF for rapid elemental analysis
As a premium low cost benchtop Energy Dispersive X-ray Fluorescence (EDXRF) elemental analyzer, the Rigaku NEX QC+ QuantEZ delivers wide elemental coverage with a easy-to-learn Windows®-based QuantEZ software. Non-destructively analyze from sodium (Na) through uranium (U) in almost any matrix, from solids and alloys to powders, liquids and slurries.

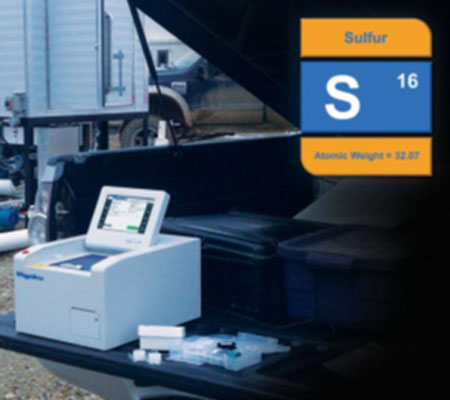

Elemental analysis in the field, plant or lab
Especially designed and engineered for heavy industrial use, whether on the plant floor or in remote field environments, the superior analytical power, flexibility and ease-of-use of the NEX QC+ QuantEZ series add to its broad appeal for an ever expanding range of applications, including exploration, research, bulk RoHS inspection, and education, as well as industrial and production monitoring applications. Whether the need is basic quality control (QC) or its more sophisticated variants - such as analytical quality control (AQC), quality assurance (QA) or statistical process control like Six Sigma - the NEX QC+ QuantEZ series is the reliable choice for routine elemental analysis.
50kV X-ray tube and SDD detector
The shuttered 50kV X-ray tube and Peltier cooled Silicon Drift Detector (SDD) detector deliver exceptional short-term repeatability and long-term reproducibility with excellent element peak resolution. This high voltage capability (50 kV), along with multiple automated X-ray tube filters, provides a wide range of XRF applications versatility and low limits-of-detection (LOD).
Options: autosampler, helium and FP
Options include fundamental parameters, automatic sample changer, sample spinner and helium purge for enhanced light element sensitivity.
Features
  • Analyze ₁₁Na to ₉₂U non-destructively
  • Powerful QuantEZ Windows-based software
  • Solids, liquids, alloys, powders and films
  • 50kV X-ray tube for wide elemental coverage
  • SDD detector for superior resolution
  • Multiple automated tube filters
  • Unmatched performance-to-price ratio
  • Optional RPF-SQX fundamental parameters
Technical Data

X-ray Tube:
- 50kV X-ray tube, 4W max power
- 6 tube filter positions with shutter

Detector:
- High performance SDD detector
- Peltier thermo-electric cooling
- Optimum balance of spectral resolution and max count rate

Sample Chamber:
- Large 190 x 165 x 60 mm sample chamber
- Single position 32 or 40 mm sample aperture
- Bulk sample aperture 5/6-position 40/32 mm automatic sample changer
- Single position 32 mm sample spinner
- Analysis in air or helium

Environmental Conditions
Ambient temperature 10-35ºC (50-95ºF)
Relative humidity ≤85% non-condensing

Software & Application Packages
- Qualitative and quantitative analysis
- RPF-SQX fundamental parameters (optional)
- Data export function with LIMS compatibility
- User selectable shaping times
- Simple flow bar wizard to create new applications

User Interface
- QuantEZ software
- External PC computer
- Data export connections

Single phase AC 100/220V, 1.4A (50/60 Hz)

Dimensions: 33.1(W) X 43.2(D) X 37.6(H) cm (13 X 17 X 14.8 inch)

Weight: 16 kg (35 lbs)

Applications
  1. Sulfur in oil - ASTM D4294, IP 336, ISO 8745, ISO 20847, JIS K 2541-4, ISO 13032
  2. Lead in Gasoline - ASTM D5059
  3. Lube oils - ASTM D6481, ASTM 7751
  4. Wood Treatment
  5. Phosphorus Fire Retardant on Fabric
  6. Silicone Coating on Paper/Plastic
  7. RoHS
  8. Cement
  9. Coatings
  10. Mining & refining
  11. Metals and alloys
  12. Paint and pigments
  13. Education
  14. Catalysts
  15. Wovens and non-wovens
Download NEX QC+ Brochure Download NEX QC+ QuantEZ Brochure
Mineral / Cement Applications
Rigaku NEX QC+ QuantEZ Mud Logging
Rigaku NEX QC+ Dolomite
Rigaku NEX QC+ Major Oxides in Clay
Rigaku NEX QC+_Finished Cement
Petroleum Products Applications
Rigaku NEX QC+ Lube Oils
Rigaku NEX QC+ ULSD
Rigaku NEX QC+ Pb in Gasoline by D5059 Bi IS Method
Si Coating Applications
Rigaku NEX QC+ Silicone on Paper & Plastic

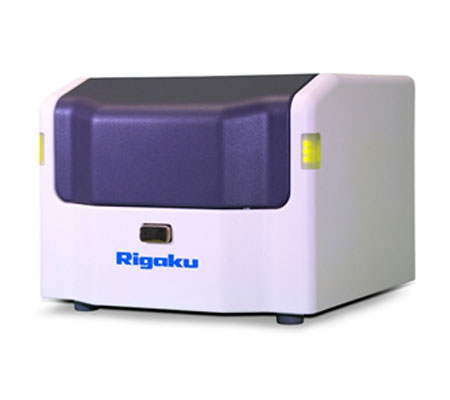

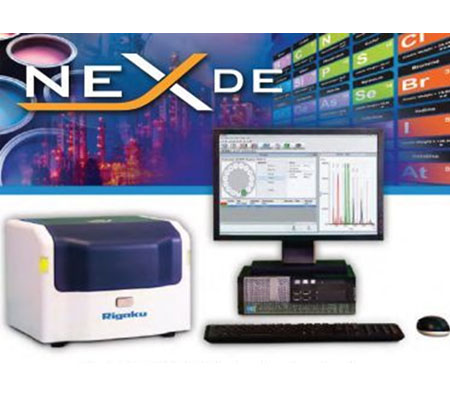

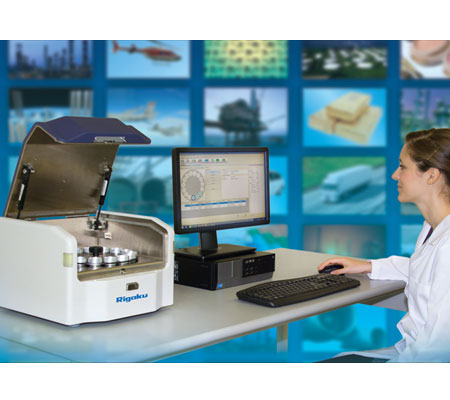

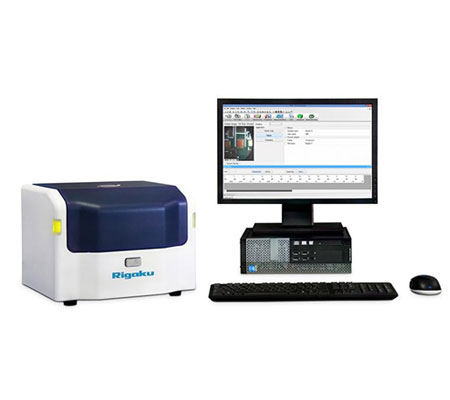

NEX DE
Energy Dispersive X-ray Fluorescence Spectrometer

Windows®-based EDXRF for rapid elemental analysis
As a premium high performance benchtop Energy Dispersive X-ray Fluorescence (EDXRF) elemental analyzer, the new Rigaku NEX DE delivers wide elemental coverage with a easy-to-learn Windows®-based QuantEZ software. Non-destructively analyze from sodium (Na) through uranium (U) in almost any matrix, from solids and alloys to powders, liquids and slurries.
XRF elemental analysis in the field, plant or lab
Especially designed and engineered for heavy industrial use, whether on the plant floor or in remote field environments, the superior analytical power, flexibility and ease-of-use of the NEX DE adds to its broad appeal for an ever expanding range of applications, including exploration, research, bulk RoHS inspection, and education, as well as industrial and production monitoring applications. Whether the need is basic quality control (QC) or its more sophisticated variants — such as analytical quality control (AQC), quality assurance (QA) or statistical process control like Six Sigma - the NEX DE is the reliable high performance choice for routine elemental analysis by XRF.
XRF with 60 kV X-ray tube and SDD detector
The 60 kV X-ray tube and Peltier cooled FAST SDD® Silicon Drift Detector deliver exceptional short-term repeatability and long-term reproducibility with excellent element peak resolution. This high voltage capability (60 kV), along with high emission current and multiple automated X-ray tube filters, provides a wide range of XRF applications versatility and low limits-of-detection (LOD).
XRF options:
autosampler, vacuum, helium and standardless FP Options include fundamental parameters, a variety of automatic sample changers, sample spinner and helium purge or vacuum atmosphere for enhanced light element sensitivity.
*FAST SDD® is a registered trademark of Amptek, Inc.
Features
  • Analyze ₁₁Na to ₉₂U non-destructively
  • Powerful QuantEZ Windows-based software
  • Solids, liquids, alloys, powders and films
  • 60 kV X-ray tube for wide elemental coverage
  • FAST SDD® detector for superior data
  • Six automated tube filters
  • Unmatched performance-to-price ratio
  • Optional RPF-SQX fundamental parameters
Technical Data

X-ray Tube:
- 60kV X-ray tube, 12W max power
- 7 tube filter positions
- 10 mm collimator

Detector:
- High performance FAST SDD detector
- Peltier thermo-electric cooling
- High spectral resolution with very high count rates

Sample Chamber
- Large 30.5 (W) X 30.5 (D) x 10.5 (H) cm chamber
- Single position 32 or 40 mm sample aperture

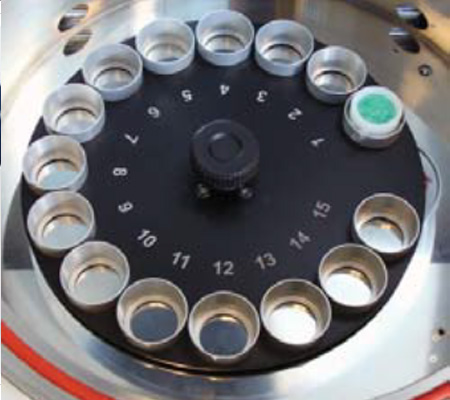

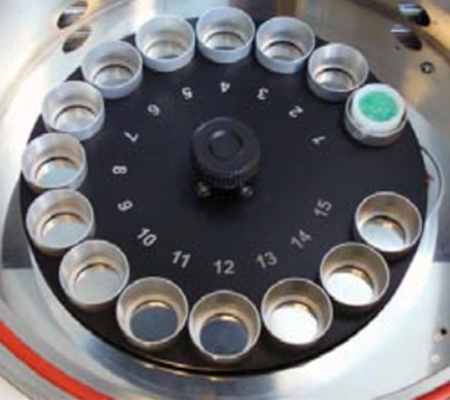

- 15-position 32 mm automatic sample changer
- 10-position 40 mm automatic sample changer
- 9-position 50 mm automatic sample changer
- Single position 32 mm sample spinner
- Analysis in air, helium, or vacuum (single position)

Environmental Conditions
Ambient temperature 10-35ºC (50-95ºF)
Relative humidity ≤85% non-condensing

Software & Application Packages:
- Qualitative and quantitative analysis
- RPF-SQX fundamental parameters (optional)
- Data export function with LIMS compatibility
- User selectable shaping times
- Simple flow bar wizard to create new applications

User Interface:
- QuantEZ software
- External PC computer
- Data export connections

Single phase AC 100/220V, 1.5A (50/60 Hz)

Dimensions: 35.6(W) X 35.1(D) X 26.0(H) cm (14 X 13.8 X 10.2 inch)

Weight: <27 kg (<60 lbs)

Applications
  1. Sulfur in oil - ASTM D4294, IP 336, ISO 8745, ISO 20847, JIS K 2541-4, ISO 13032
  2. Lead in Gasoline - ASTM D5059
  3. Lube oils - ASTM D6481, ASTM 7751
  4. Wood Treatment
  5. Phosphorus Fire Retardant on Fabric
  6. Silicone Coating on Paper/Plastic
  7. RoHS
  8. Cement
  9. Coatings
  10. Mining & refining
  11. Metals and alloys
  12. Paint and pigments
  13. Education
  14. Catalysts
  15. Wovens and non-wovens
Download Brochure
Mineral / Cement Applications
Rigaku NEX DE Analysis of Cement
Rigaku NEX DE Gold Recovery
Rigaku NEX DE_Gold Processing
Petroleum Products Applications
Rigaku NEX DE ASTM D4929 Cl in Crude
Rigaku NEX DE Lube Oils by ASTM D7751

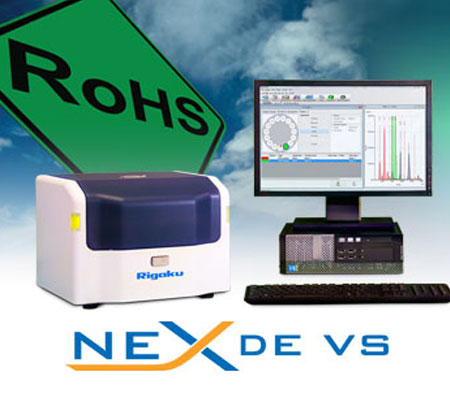

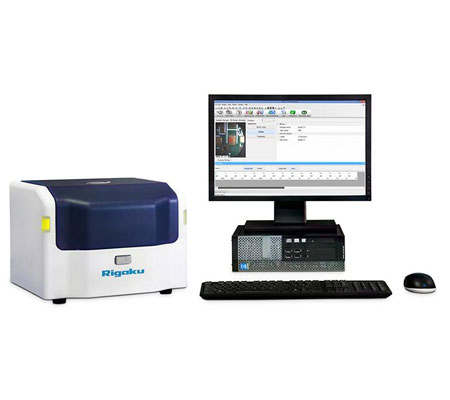

NEX DE VS
Energy Dispersive X-ray Fluorescence Spectrometer

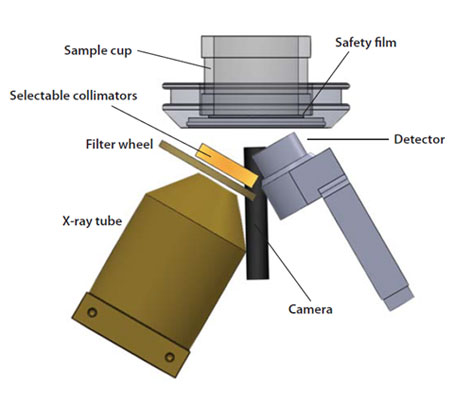

Variable small spot plus camera EDXRF for elemental analysis
As a premium high performance, SMALL SPOT benchtop Energy Dispersive X-ray Fluorescence (EDXRF) elemental analyzer, the new Rigaku NEX DE VS delivers wide elemental coverage with a easy-to-learn Windows®-based QuantEZ software. Non-destructively analyze from sodium (Na) through uranium (U) in almost any matrix, from solids and alloys to powders, liquids, slurries and RoHS materials.
Multi-position, small spot & bulk elemental analysis
New Rigaku NEX DE VS elemental analyzer (EDXRF) offers multi-position bulk analysis in addition to a large single position sample stage, with three analysis spot size options — 1 mm, 3 mm and 10 mm — that are easily changeable by the system's automatic collimators. A high resolution camera and LED lighting system allows a sample's image to be recorded via the Windows software interface.
XRF elemental analysis in the field, plant or lab
Especially designed and engineered for heavy industrial use, whether on the plant floor or in remote field environments, the superior analytical power, flexibility and ease-of-use of the NEX DE adds to its broad appeal for an ever expanding range of applications, including exploration, research, bulk RoHS inspection, and education, as well as industrial and production monitoring applications. Whether the need is basic quality control (QC) or its more sophisticated variants - such as analytical quality control (AQC), quality assurance (QA) or statistical process control like Six Sigma - the NEX DE is the reliable high performance choice for routine elemental analysis by XRF.
XRF with 60kV X-ray tube and SDD detector
The 60kV X-ray tube and Peltier cooled FAST SDD® Silicon Drift Detector deliver exceptional short-term repeatability and long-term reproducibility with excellent element peak resolution. This high voltage capability (60 kV), along with high emission current and multiple automated X-ray tube filters, provides a wide range of XRF applications versatility and low limits-of-detection (LOD).
XRF options:
Autosampler, helium and standardless FP Options include fundamental parameters, a variety of automatic sample changers, sample spinner and helium purge for enhanced light element sensitivity.
*FAST SDD® is a registered trademark of Amptek, Inc.
Features
  • Analyze ₁₁Na to ₉₂U non-destructively
  • Powerful QuantEZ Windows®-based software

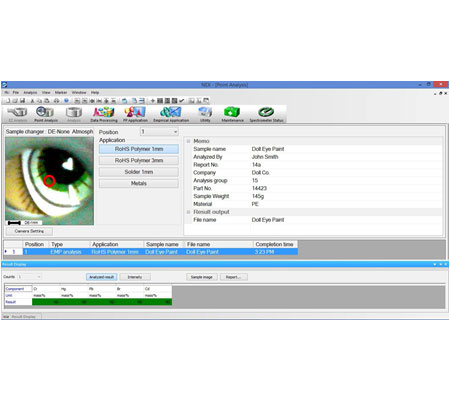

  • High resolution camera

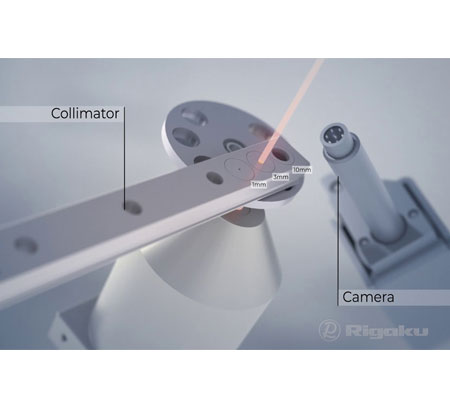

  • 1, 3 or 10 mm analysis spot size
  • Solids, liquids, alloys, powders and films
  • 60kV X-ray tube for wide elemental coverage
  • FAST SDD® detector for superior data
  • Six automated tube filters
  • Unmatched performance-to-price ratio
  • Optional RPF-SQX fundamental parameters
Technical Data

X-ray Tube:
- 60kV X-ray tube, 12W max power
- 7 tube filter positions
- 10 mm collimator

Detector:
- High performance FAST SDD detector
- Peltier thermo-electric cooling
- High spectral resolution with very high count rates

Sample Chamber
- Large 30.5 (W) X 30.5 (D) x 10.5 (H) cm chamber
- Single position 32 or 40 mm sample aperture
- 15-position 32 mm automatic sample changer
- 10-position 40 mm automatic sample changer
- 9-position 50 mm automatic sample changer
- Single position 32 mm sample spinner
- Analysis in air, helium, or vacuum (single position)

Environmental Conditions
Ambient temperature 10-35ºC (50-95ºF)
Relative humidity ≤85% non-condensing

Software & Application Packages
- Qualitative and quantitative analysis
- RPF-SQX fundamental parameters (optional)
- Data export function with LIMS compatibility
- User selectable shaping times
- Simple flow bar wizard to create new applications

User Interface
- QuantEZ software
- External PC computer
- Data export connections

Single phase AC 100/220V, 1.5A (50/60 Hz)

Dimensions: 35.6(W) X 35.1(D) X 26.0(H) cm (14 X 13.8 X 10.2 inch)

Weight: <27 kg (<60 lbs)

Applications
  1. Petroleum
  2. Wood Treatment
  3. Phosphorus Fire Retardant on Fabric
  4. RoHS
  5. Cement
  6. Coatings
  7. Mining & refining
  8. Metals and alloys
  9. Paint and pigments
  10. Education
  11. Catalysts
  12. Wovens and non-wovens
Download Brochure

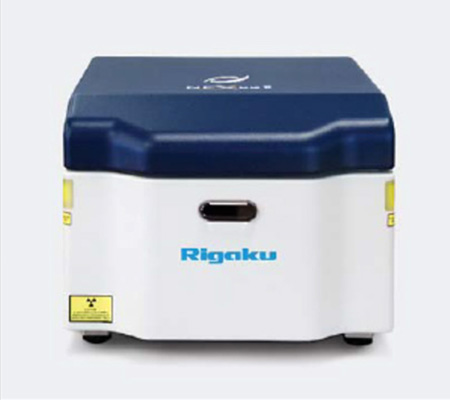

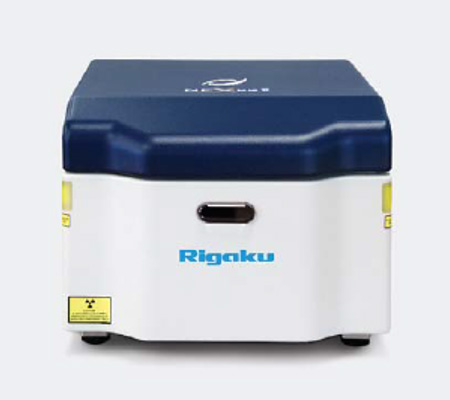

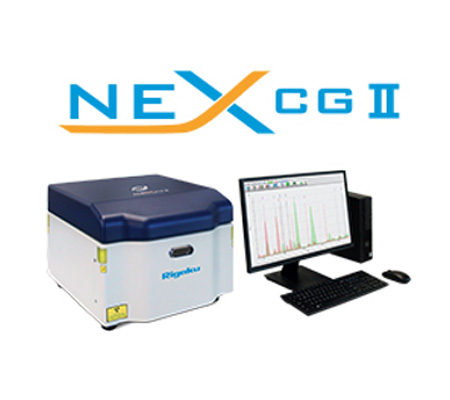

NEX CG II
Energy Dispersive X-ray Fluorescence Spectrometer

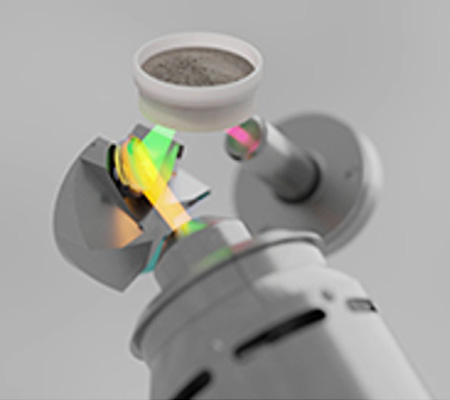

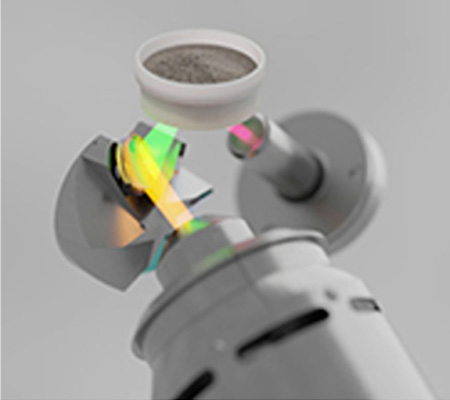

Next-generation Advanced Cartesian Geometry EDXRF for Rapid Qualitative and Quantitative Elemental Analysis
NEX CG II, a powerful second-generation energy dispersive X-ray fluorescence (EDXRF) spectrometer, delivers rapid qualitative and quantitative determination of major and minor atomic elements in a wide variety of sample types — from oils and liquids to solids, metals, polymers, powders, pastes, coatings, and thin films.
- Non-destructive elemental analysis for sodium (Na) to uranium (U)
- Quick elemental analyses of solids, liquids, powders, coatings, and thin films
- Indirect excitation for exceptionally low detection limits
- High-power 50 kV 50 W X-ray tube
- Large-area high-throughput silicon drift detector (SDD)
- Analysis in air, helium, or vacuum
- Powerful and easy to use QuantEZ® software with multilingual user interface
- Advanced RPF-SQX Fundamentals Parameters software featuring Scattering FP
- Rigaku Profile Fitting (RPF) advanced algorithm for peak deconvolution
- Various automatic sample changers accommodating up to 52 mm samples
- Low cost of ownership backed by a 2-year warranty
Industrial Quality Control to Advanced Research Applications
The Rigaku NEX CG II is a multi-element, multi-purpose analyzer, ideal for measuring ultra-low and trace element concentrations into the percent levels. Especially well-suited for semi-quantitative determination of elemental content in complete unknowns, NEX CG II serves many industries. Applications range from research and development to industrial and in-plant quality assurance. It is easy to use for non-technical operators yet powerful enough for expert use in commercial labs and R&D facilities. Users can achieve the lowest limits of detection and easily manage complex applications like testing agricultural soils, and plant materials, analyzing finished animal feeds, measuring waste oils, environmental monitoring, and many others.
Cartesian Geometry and Polarization for Trace Level Sensitivity
Unlike conventional EDXRF spectrometers, NEX CG II is an indirect excitation system using secondary targets rather than tube filters. Monochromatic and polarized excitation from secondary targets vastly improves detection limits for elements in highly scattering matrices like water, hydrocarbons, and biological materials. Secondary target excitation in full 90° Cartesian Geometry eliminates background noise. As a result, NEX CG II brings a new level of analytical sensitivity to XRF technology. Users can measure ultra-low and trace element concentrations, even in challenging sample types.
Easy Instrument Control with Advanced Qualitative and Quantitative Analytical Software
NEX CG II is easy to use with QuantEZ, a powerful PC-based software providing intuitive instrument control with simple menu navigation and a customizable EZ Analysis interface. Users can maximize their time and productivity with simplified routine operations and create their own methods using a simple flow bar wizard.
Advanced qualitative and quantitative analysis is powered by Rigaku’s RPF-SQX Fundamental Parameters (FP) software, featuring Rigaku Profile Fitting (RPF) technology and Scattering FP.
Technical Data

Excitation
- X-ray tube, end-window type with Pd anode
- 50 W max power
- 50 kV max voltage
- Five standard polarization and secondary targets for optimum excitation

Detection
- Large-area high-throughput silicon drift detector (SDD)
- Peltier electronic cooling
- Digital pulse processor
- Automated or user confi gurable shaping times for optimum analytical performance

Sample chamber
- Large 32.5 cm diameter x 7.5 cm deep sample chamber allows for various sample sizes
- Analysis in air

Environmental Conditions
- Ambient temperature 18 – 28°C (65 – 82°F)
- Relative humidity ≤75%
- Vibration undetectable by human
- Free from corrosive gas, dust and particles

Software
- QuantEZ® software for control of spectrometer functions and data analysis
- Simple flow bar wizard to create your own methods
- Empirical calibration with overlap and matrix compensation

Computer
- External PC computer system

Single phase AC 100/220 V, 3.8/1.6 A (50/60 Hz)
Dimensions: 46.3 (W) x 49.2 (D) x 38.2 (H) cm (18.2 x 19.4 x 15.0 in)
Weight: 65.8 kg (145 lbs.)

Applications
  1. Sulfur in oil - ASTM D4294, IP 336, ISO 8745, ISO 20847, JIS K 2541-4, ISO 13032, ASTM D7220, EPA ULSD, EPA Tier 3
  2. Lead in Gasoline - ASTM D5059
  3. Chlorine in Crude Oil - ASTM D4929
  4. Lube oils - ASTM D6481, ASTM 7751
  5. Wood Treatment
  6. Phosphorus Fire Retardant on Fabric
  7. Silicone Coating on Paper/Plastic
  8. RoHS
  9. Cement including ASTM C114
  10. Coatings
  11. Mining & refining
  12. Metals and alloys
  13. Paint and pigments
  14. Education
  15. Catalysts
  16. Wovens and non-wovens
Download NEX CG II Brochure

Newsletter Subscription

Join MSI newsletter to Receive our latest product updates & many more...
